V-430

Automatic Soap Dispenser

V-430

The automatic sensor activates soap release without the need for physical contact, reducing the spread of germs and bacteria.

Smart and trendy design that allows this soap dispenser to blend into any space perfectly.

Perfect to use at Office, Schools, Banks, Hospitals, Hotels Bathrooms, Kitchens and Restaurants.

Touch-free

Easy refilling

More secure

DESCRIPTION

Manufactured in durable ABS plastic, Touch-Free wall mounted design.

Safety locks with special keys help prevent tampering and destruction while ensuring hygiene.

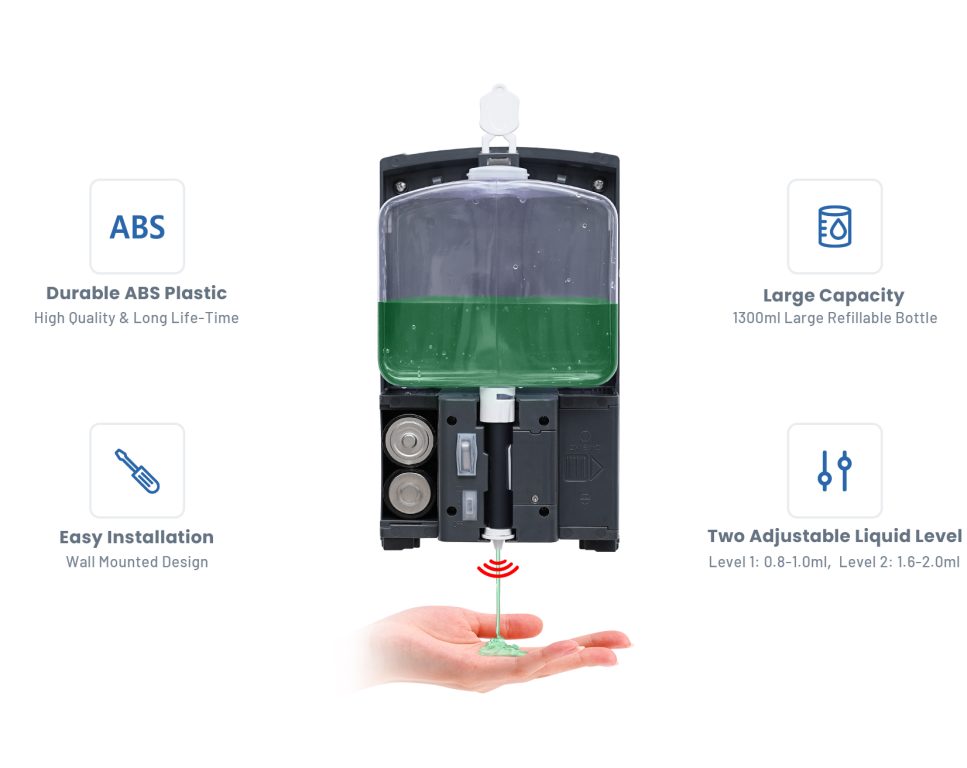

Large capacity in 1300ml with visible tank and large opening for easy refilling.

Measured soap dispensing to reduce waste of contents.

Special valve design prevents drips and provides anti-leakage experience.

Easy Set Up Via 4 “D” size Alkaline Batteries(Not Included).

DETAILS

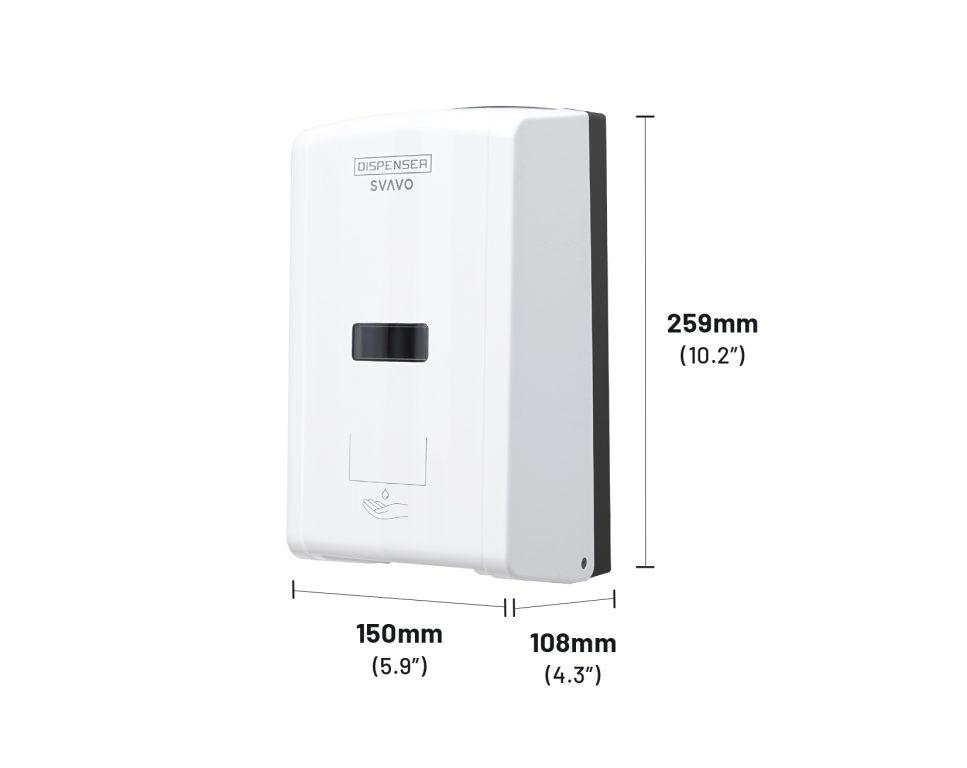

Model Number	V-430	Unit Size	L150W108H259mm
Capacity	1300ml	Material	ABS
Liquid Outlet Volume	Level 1: 0.8-1.0ml Level 2: 1.6-2.0ml	Installation	Wall mounted
Sensor Range	0-10cm	Weight	829g
Sensor Type	Infrared Sensor	Quantity Per Case	18pcs
Power Supply	4 PCS ‘D size batteries	Carton Size	700483282mm
Suitable Liquid	Liquid soap (concentration ≤1000mPa.s)	Max Loading Quantity	20GP: 5094pcs ; 40HQ: 12456pcs

DOWNLOADS

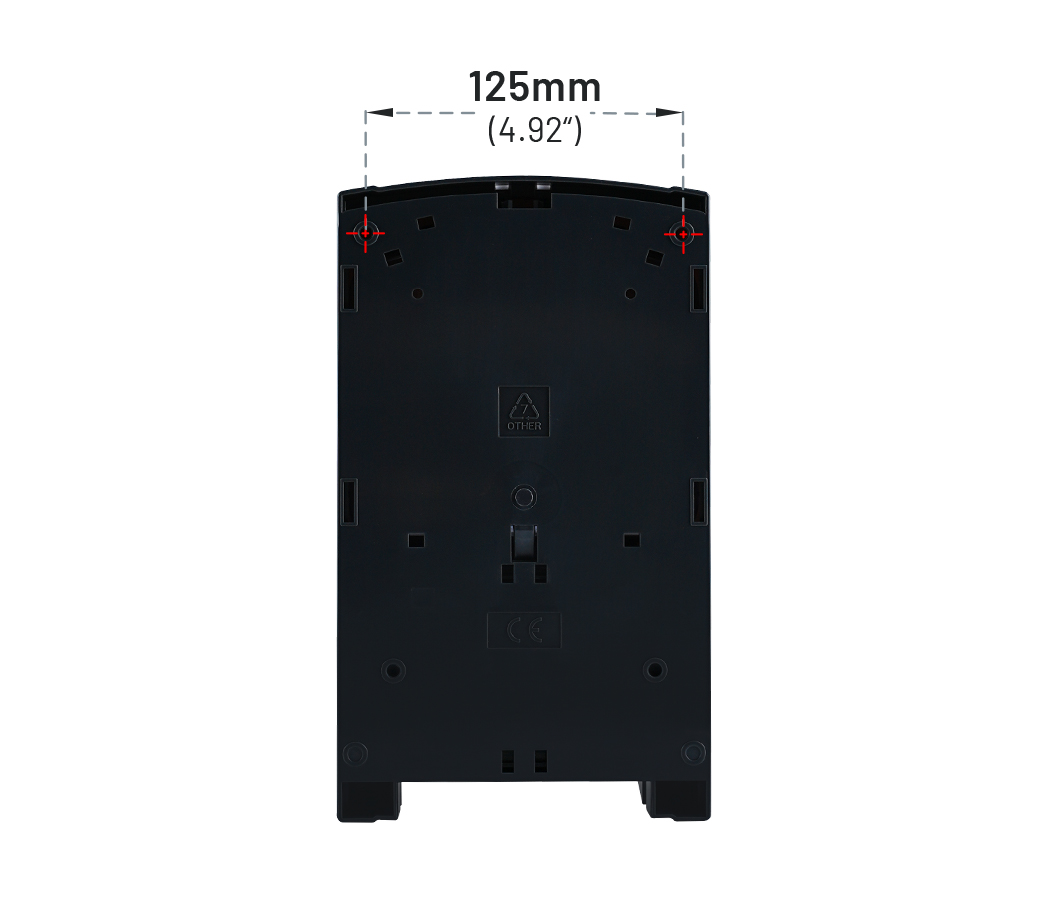

V-430Hole spacing diagram
