V-130

Automatic Soap Dispenser

V-130

The sterilizer can quickly and effectively remove germs on hands prevent the spread and reproduction of germs.

Smart and trendy design that allows this soap dispenser to blend into any space perfectly.

Perfect to use at Office, Schools, Banks, Hospitals, Hotels Bathrooms, Kitchens and Restaurants.

Touch-free

Easy refilling

Low battery reminder

DESCRIPTION

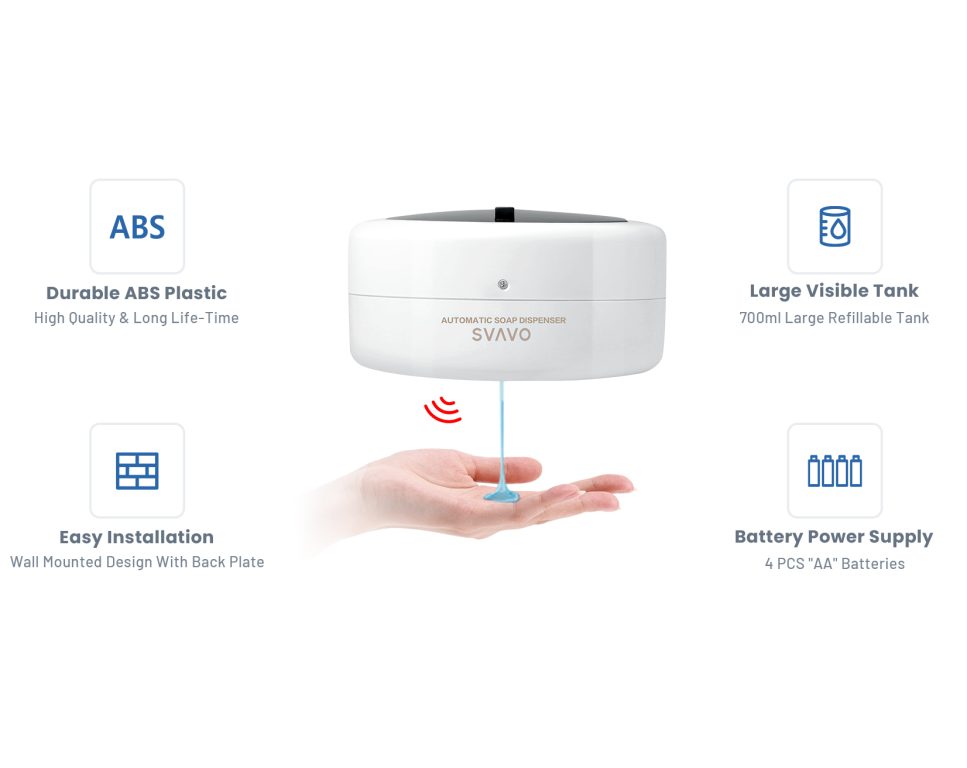

Manufactured in durable ABS plastic, Touch-Free wall mounted design.

Safety locks with special keys help prevent tampering and destruction while ensuring hygiene.

Large capacity in 700ml with visible tank and large opening for easy refilling.

Measured soap dispensing to reduce waste of contents.

Special valve design prevents drips and provides anti-leakage experience.

Easy Set Up Via 4 “AA” Alkaline Batteries(Not Included).

DETAILS

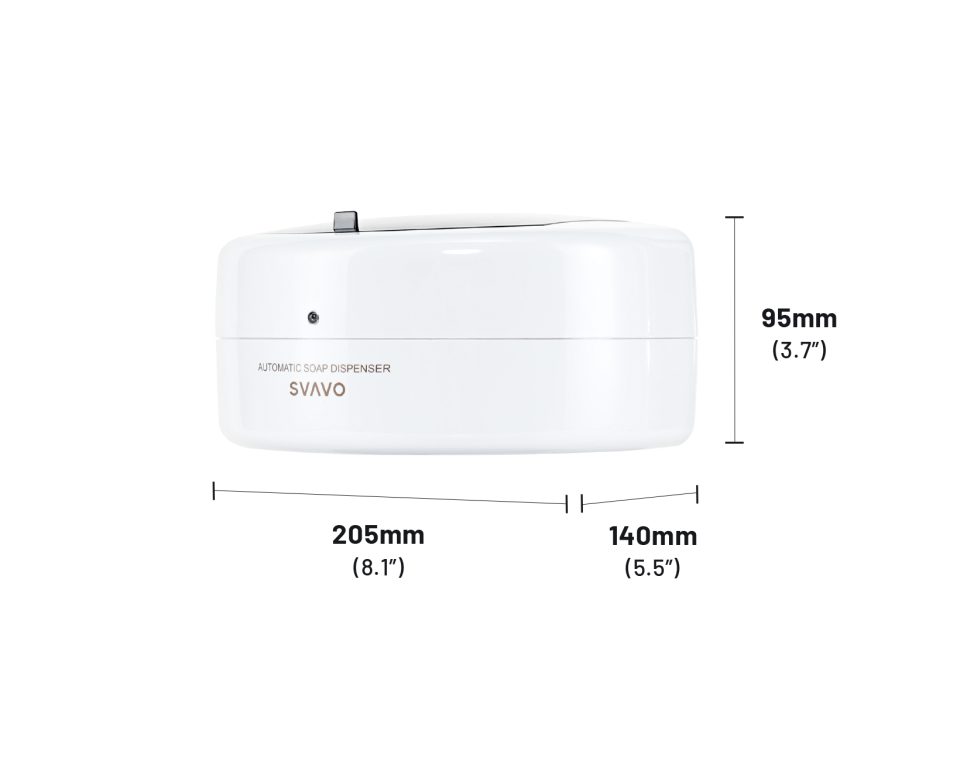

Model Number	V-130	Unit Size	L205W140H95mm
Capacity	700ml	Material	ABS
Liquid Outlet Volume	0.6-1.0ml	Installation	Wall mounted
Sensor Range	0-10cm	Weight	417g
Sensor Type	Infrared Sensor	Quantity Per Case	24pcs
Power Supply	4 PCS ‘AA” batteries	Carton Size	572397320mm
Suitable Liquid	Liquid soap (concentration ≤1000mPa.s)	Max Loading Quantity	20GP: 8904pcs ; 40HQ: 21792pcs

DOWNLOADS

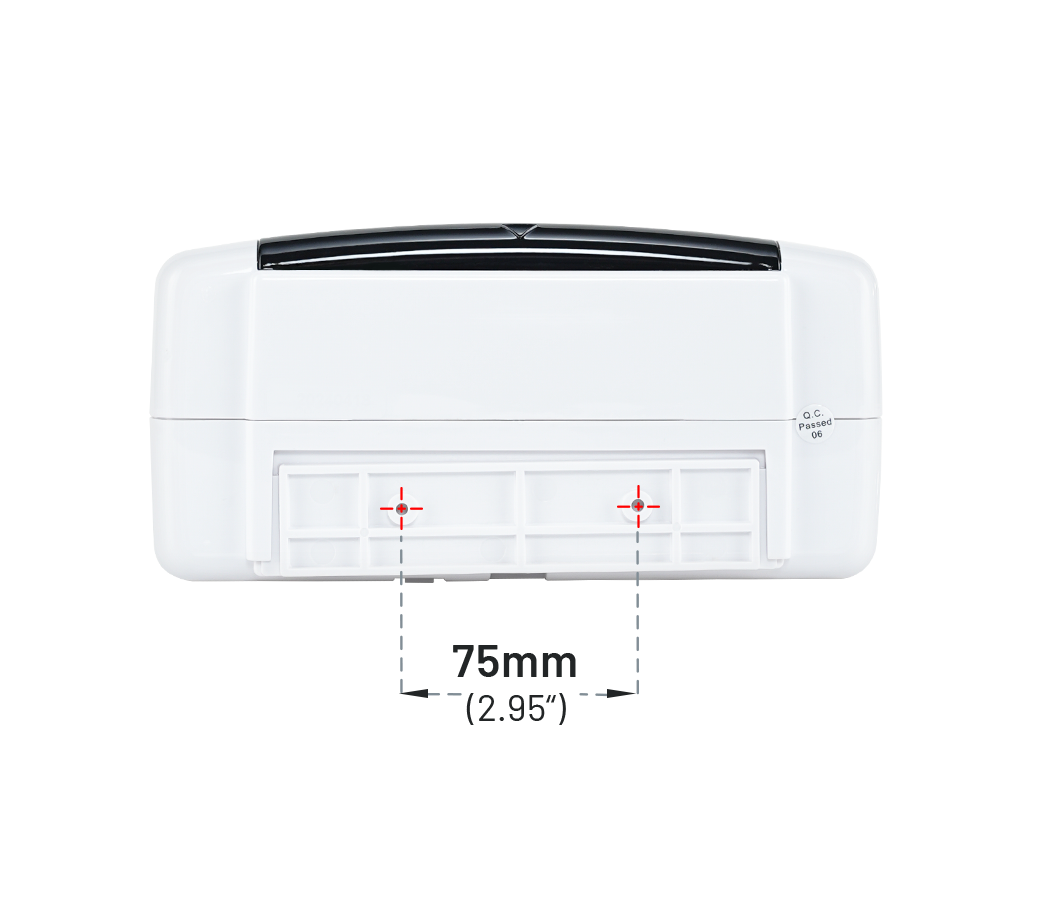

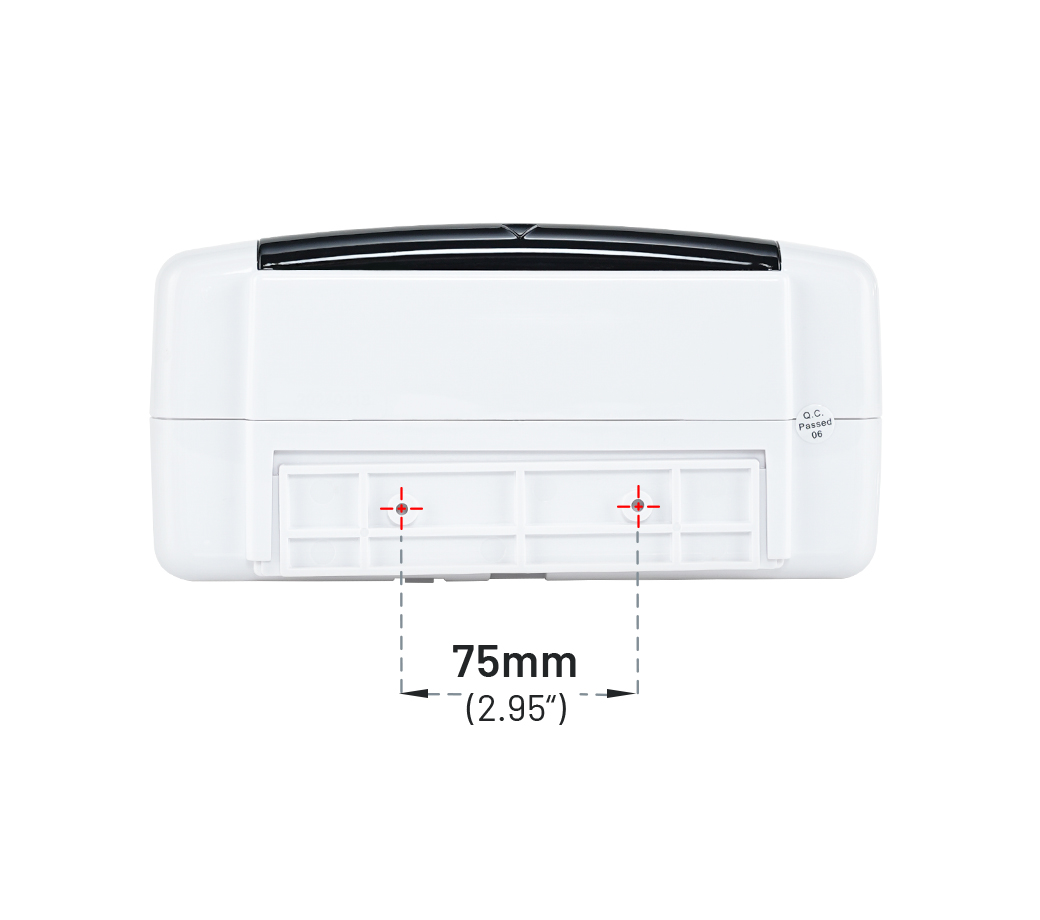

V-130Hole spacing diagram
