V-473

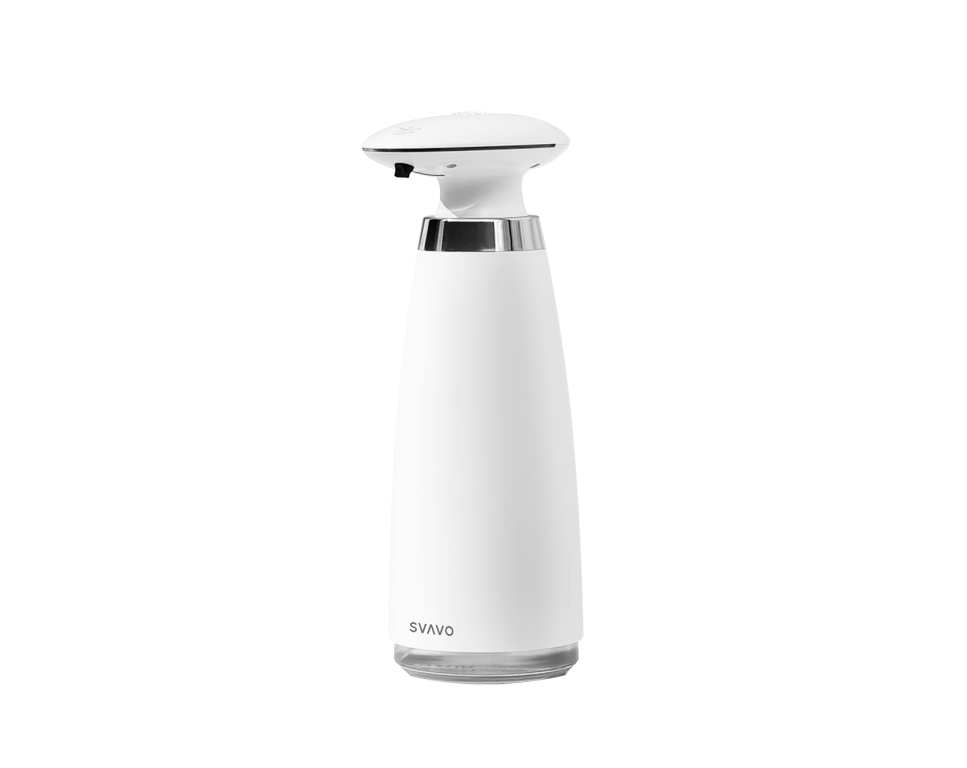

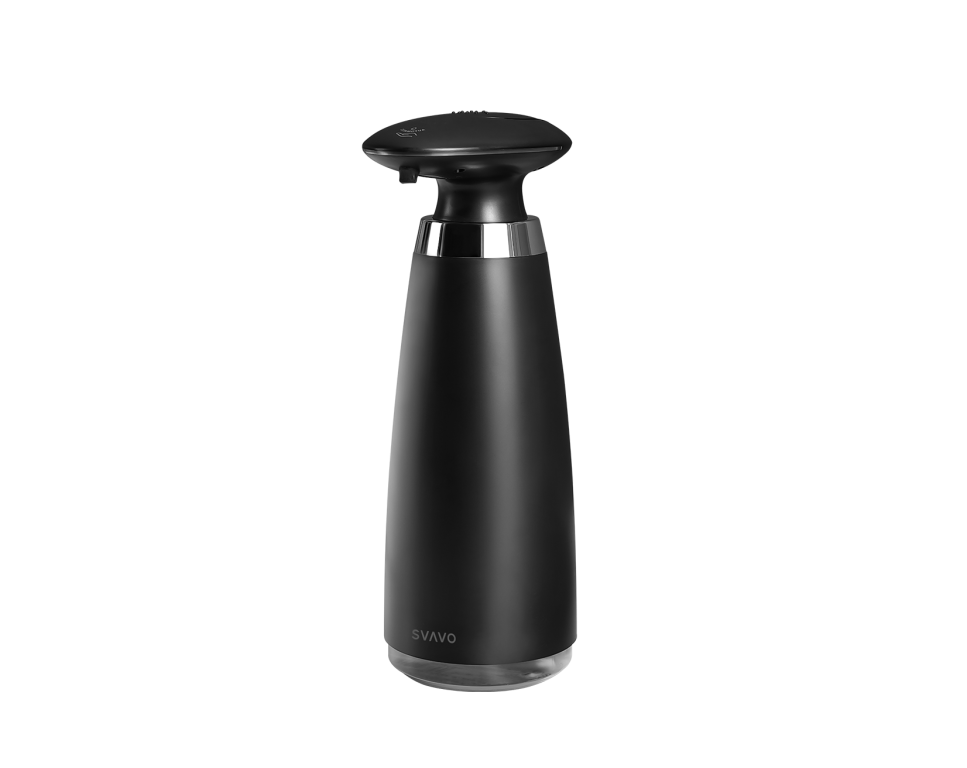

Automatic Foam / Liquid Soap Dispenser

V-473

The automatic sensor activates soap release without the need for physical contact, reducing the spread of germs and bacteria.

Smart and trendy design that allows this soap dispenser to blend into any space perfectly.

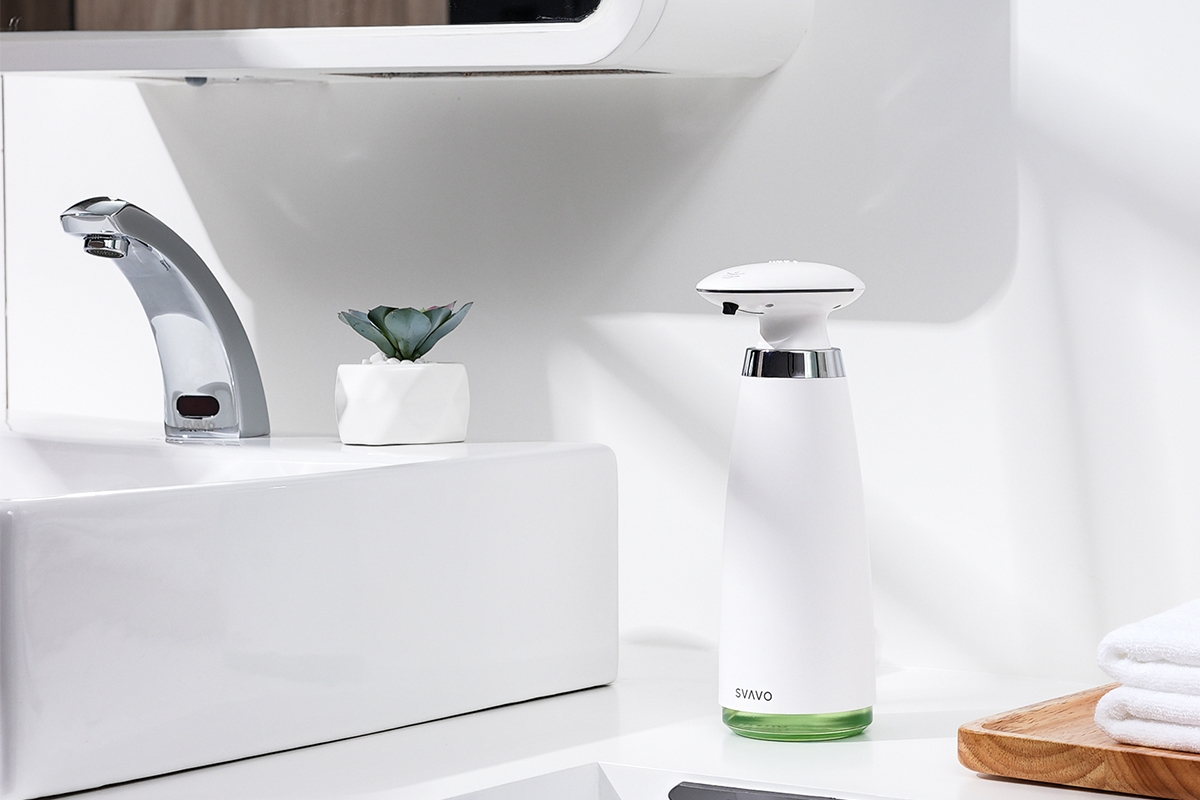

Perfect for kitchen, bathroom, commercial situation and decorating the countertop.

Touch-free

IPX4 Waterproof

Red LED blinks

DESCRIPTION

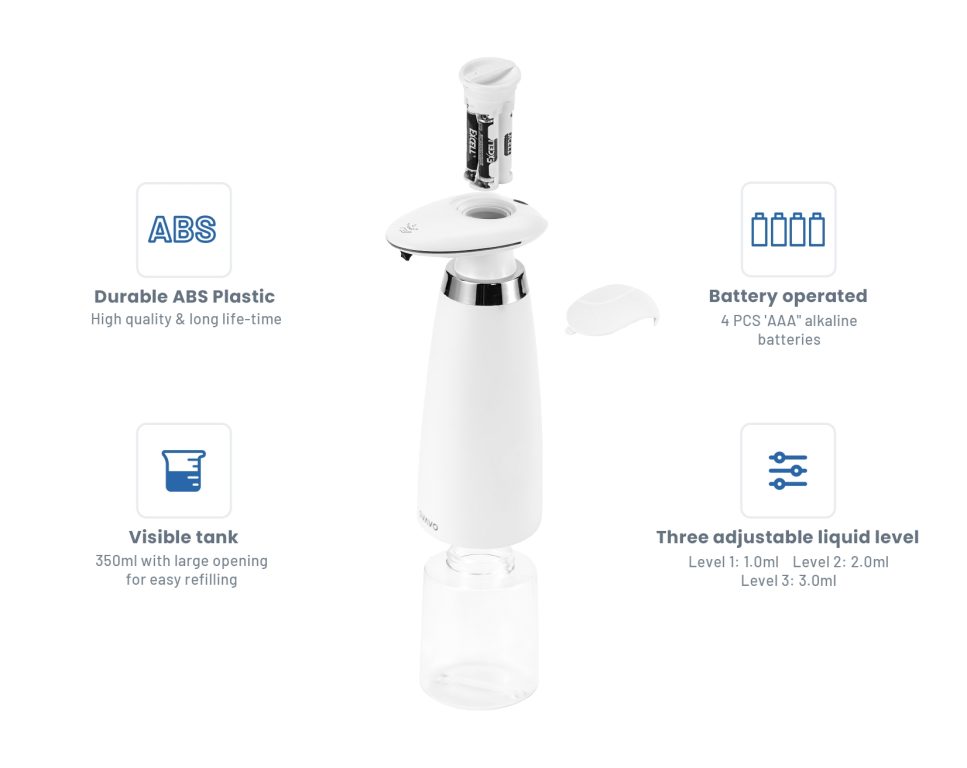

Manufactured in durable ABS plastic, Touch-Free tabletop design.

Sleek design with 350ml refillable tank, large opening for easy refilling.

Comes with optional liquid dosage from 0.5ml/1.0ml.

Durable-IPX4 advanced waterproof design effectively prevents soap or water from corroding the circuit board.

Special valve design prevents drips and provides anti-leakage experience.

Easy set up via 4 “AAA” alkaline batteries(Not Included).

DETAILS

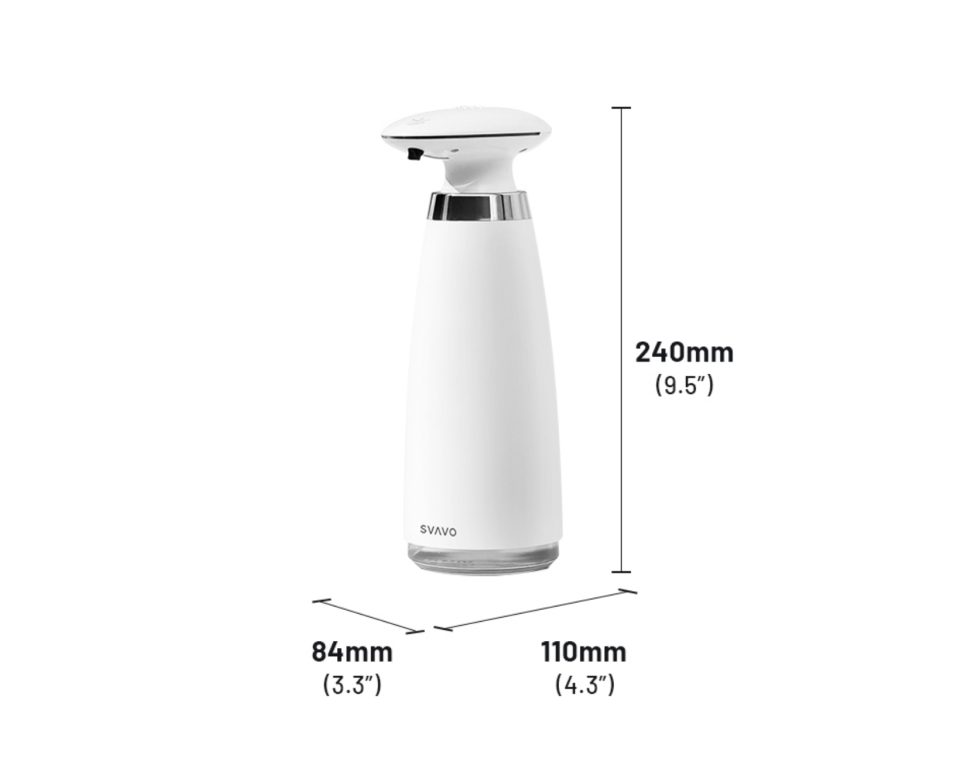

Model Number	V-473	Unit Size	φ84W110H240mm
Capacity	350ml	Material	ABS
Liquid Outlet Volume	Level 1 : 1.0ml Level 2 : 2.0ml Level 3 : 3.0ml	Installation	Tabletop
Sensor Range	2-8cm	Weight	428g
Sensor Type	Infrared Sensor	Quantity Per Case	12pcs
Power Supply	4 PCS ‘AAA” alkaline batteries	Carton Size	408310265mm
Suitable Liquid	Liquid soap (concentration ≤1000mPa.s)	Max Loading Quantity	20GP: 9660pcs ; 40HQ: 23628pcs
