ZM-046FM

Automatic Foam Soap Dispenser

ZM-046FM

INQUIRY

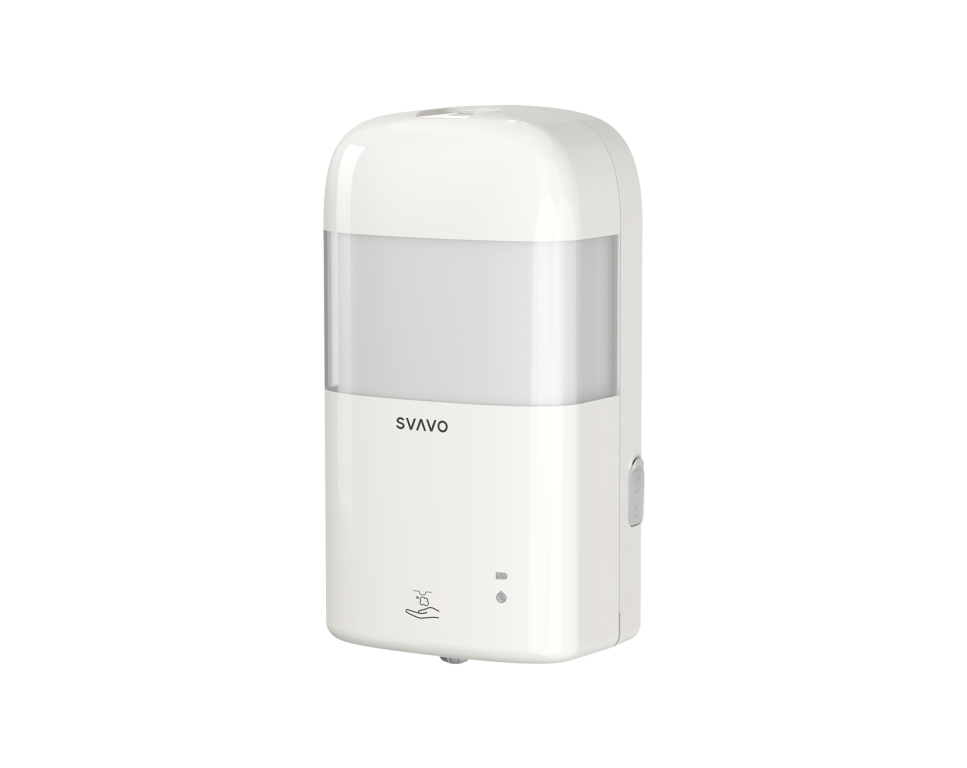

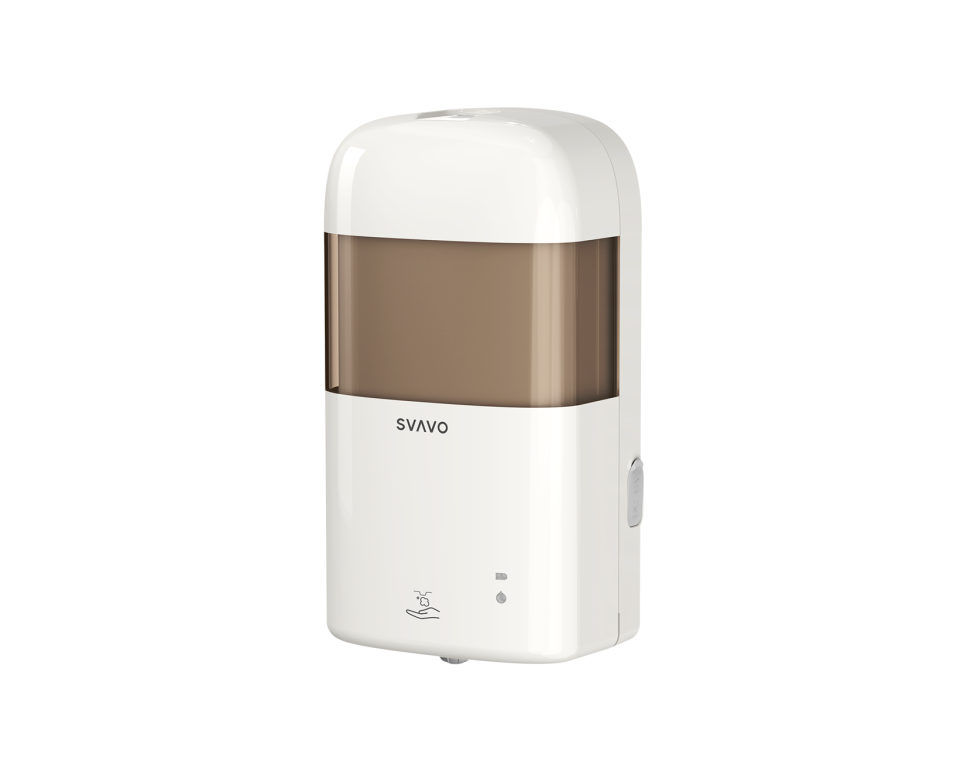

Automatic Foam Soap Dispenser

Waterproof of robust ABS plastic material. Touch-free to avoid touching any germ.

800ml large capacity and transparent bottle with visual window, no need to refill frequently.

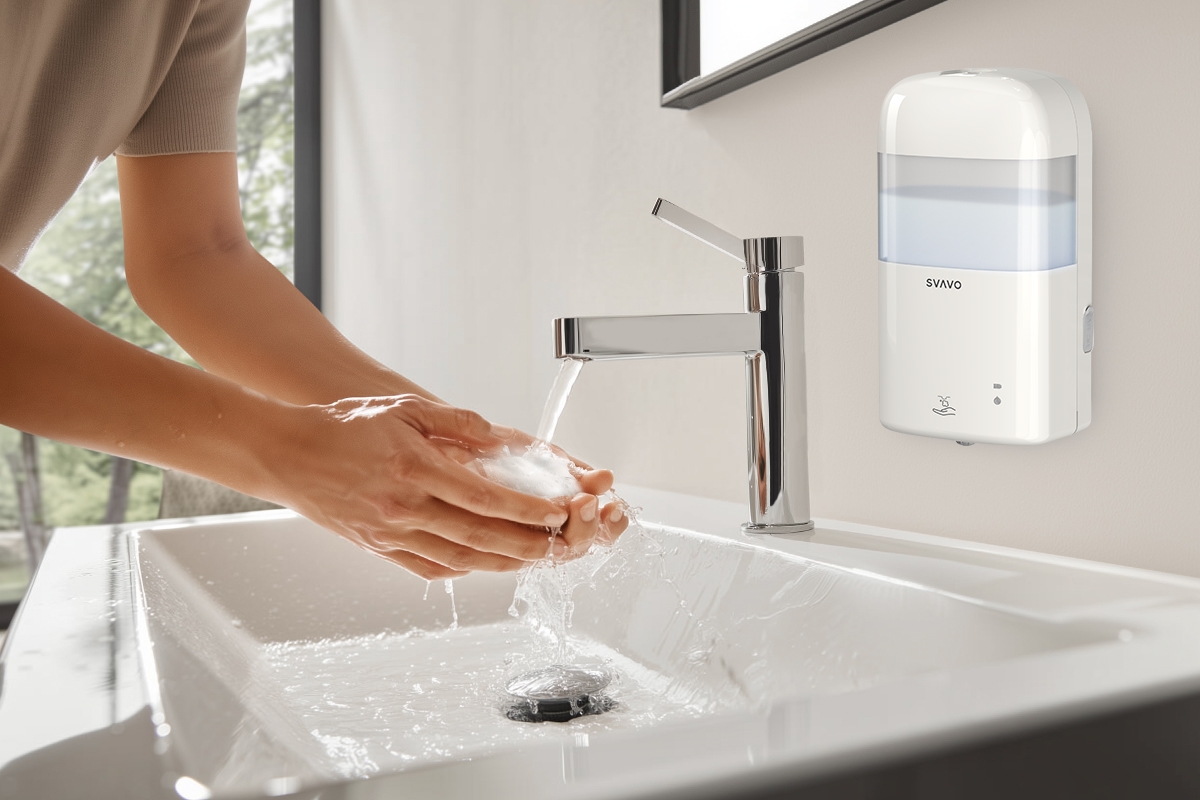

Perfect to use at bathroom of Office, Schools, Banks, Hospitals, Hotels Bathrooms, Kitchens and Restaurants.

Touchless

Automatic Liquid Dispensing

Ajustable

Liquid Dosage

Smart

Indicator light

DESCRIPTION

Manufactured in ABS plastic with Patented design, ouch-Free one-at-a-time dispensing reduces consumption and improves hygienic experience.

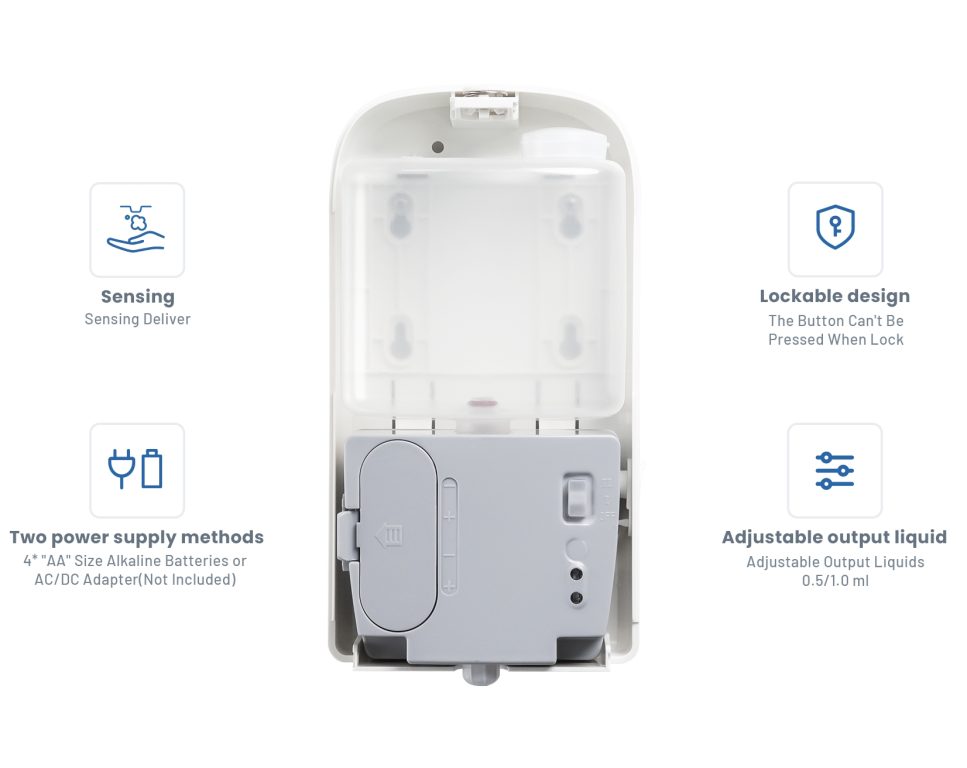

A safety key lock design help prevent tampering and vandalism at the same time that hygiene is guaranteed.

Smart reminder indicator, LED indicator light flashes in red when low battery. The ultra-power-saving smart machine can be used continuously for at least 12,000 times.

Adjustable liquid soap dispenser – Two level soap supply 1.0 ml or 2.0 ml.

Operates on 4* “AA” size alkaline batteries or AC/DC adapter(Not Included).

Large opening for easy refilling.

DETAILS

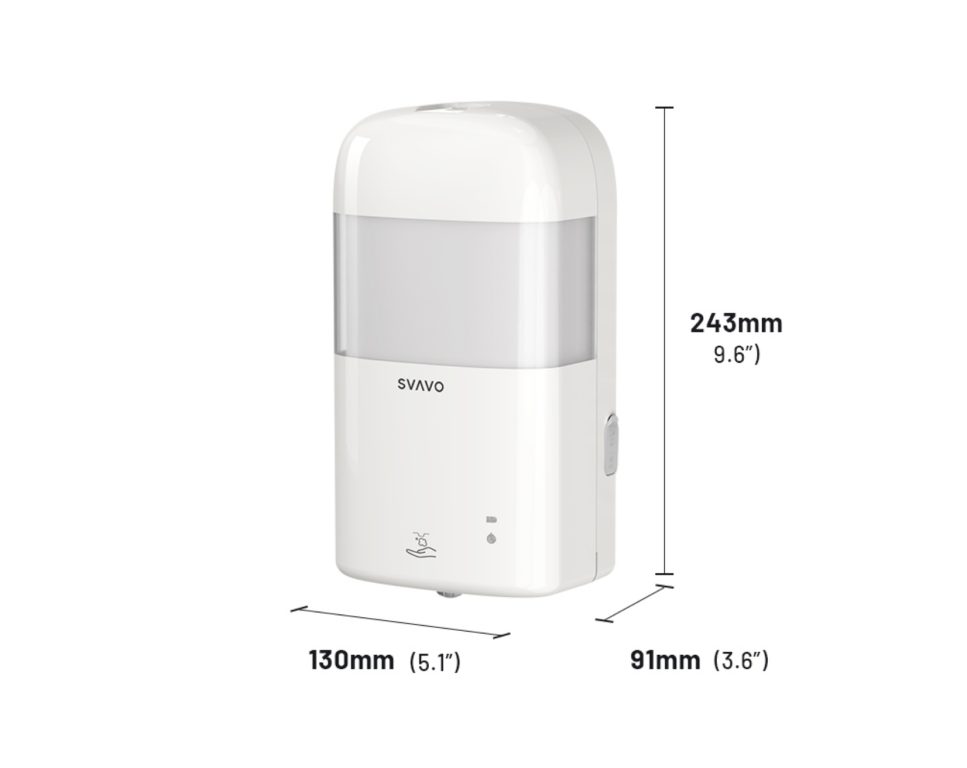

Model Number	ZM-046FM	Unit Size	L130W91H243 mm
Input Voltage	DC6V	Material	Plastic ABS, PC
Working Current	≤1000mA	Weight	680 g
Capacity:	800 ml	Liquid Dosage:	I: 0.5 ml II: 1.0 ml
Sensor Range	2 – 10±2cm	Quantity Per Case	20 pcs
Sensor Type	Infrared Sensor	Carton Size	530520292 mm
Power Supply	4PCS * AA / 1.5V	Max Loading Quantity	20GP: 7000 pcs 40HQ: 16740 pcs

DOWNLOADS

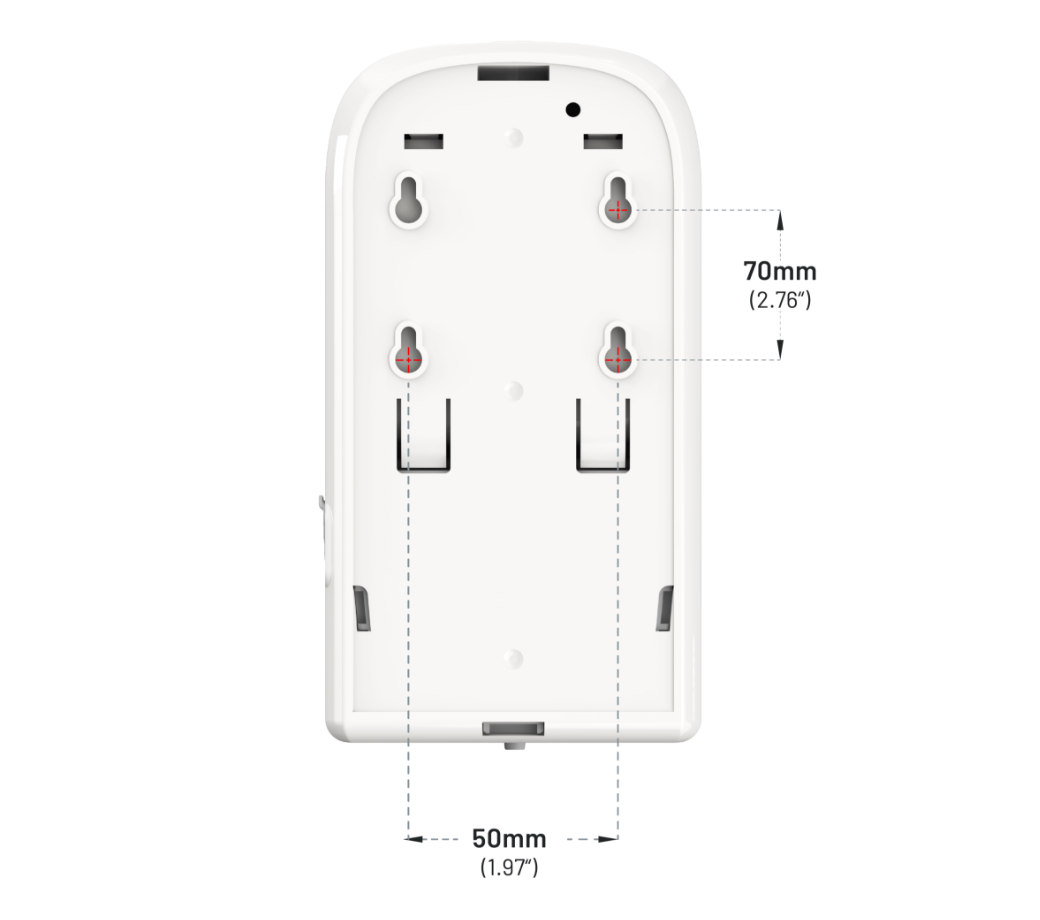

ZM-046FMHole spacing diagram
